Convention

Le mot clé « distinct » sera utilisé dans les requêtes pour éviter les lignes en doublons

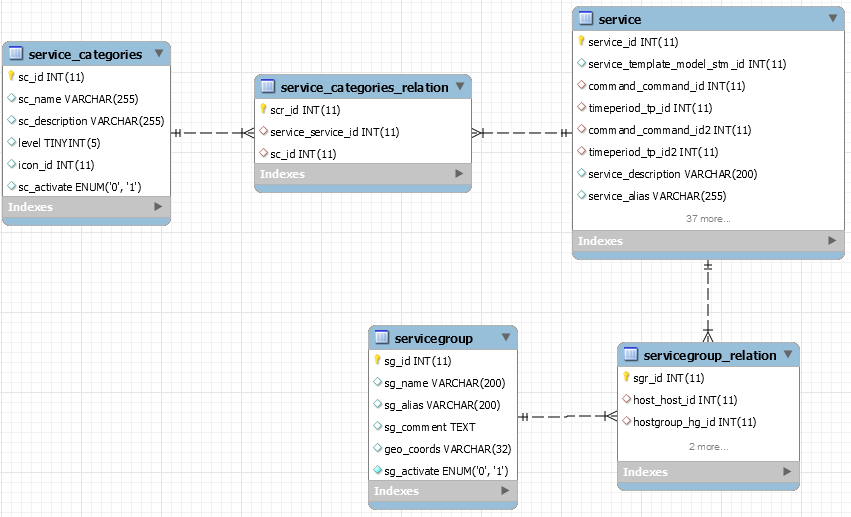

Les tables en présence

Table	Description
service	Liste les services et templates de services
service_categories	Liste les catégories de services
service_categories_relation	Relation entre les tables service et service_categories
Servicegroup	Liste les groupes de services
servicegroup_relation	Relation entre les tables servicegroup et servicegroup_relation

Les services

Le schéma

Compréhension de la table des services

La table des services héberge les services et les templates

Pour les distingués les champs, il y a 2 valeurs de renseignés :

service_register :
Valeur à 0 Pour un template
Valeur à 1 Pour un service
Service_activate
Valeur à 0 Le service n’est pas pris en compte lors de l’export des pollers et le template n’est pas appliqué lors de l’application d’un template d’hôte
Valeur à 1 Le service est exporté et le template de service est applqué

Analyse

Le schéma ci-dessus nous montre la relation entre les services et templates de service :

Comme indiqué ci-dessus il n’y a pas de table de relation entre les services et ses templates.

Requête pour tout lister

Requête

SELECT DISTINCT
SVC.service_description AS "SERVICE",
FROM centreon.service AS SVC
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
ORDER BY SVC.service_description

SELECT DISTINCT
SVC.service_description AS "SERVICE",
FROM centreon.service AS SVC
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
ORDER BY SVC.service_description

Résultat partiel

SERVICES
App-DB-MySQL-Connection-Time
App-DB-MySQL-Connections-Number
App-DB-MySQL-Database-Size
App-DB-MySQL-Long-Queries
App-DB-Mysql-Process-mysqld-Status
App-DB-MySQL-Slowqueries
App-DB-MySQL-Uptime
App-Monitoring-Centreon-Broker-module-Stats
App-Monitoring-Centreon-Broker-RRD-Stats-Central
App-Monitoring-Centreon-Broker-SQL-Stats-Central

Relation entre services et templates

Requête

SELECT DISTINCT
SVC.service_description AS "SERVICE",
STPL.service_description AS "TEMMPLATE"
FROM centreon.service AS SVC
LEFT JOIN centreon.service AS STPL ON STPL.service_id=SVC.service_template_model_stm_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
ORDER BY SVC.service_description

SELECT DISTINCT
SVC.service_description AS "SERVICE",
STPL.service_description AS "TEMMPLATE"
FROM centreon.service AS SVC
LEFT JOIN centreon.service AS STPL ON STPL.service_id=SVC.service_template_model_stm_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
ORDER BY SVC.service_description

Résultat partiel

SERVICE	TEMPLATE
App-DB-MySQL-Connection-Time	TS_App-DB-MySQL-Connection-Time
App-DB-MySQL-Connections-Number	TS_App-DB-MySQL-Connections-Number
App-DB-MySQL-Database-Size	TS_App-DB-MySQL-Database-Size
App-DB-MySQL-Long-Queries	TS_App-DB-MySQL-Long-Queries
App-DB-Mysql-Process-mysqld-Status	TS_App-DB-Mysql-Process-mysqld-Status-SNMP
App-DB-MySQL-Slowqueries	TS_App-DB-MySQL-Slowqueries
App-DB-MySQL-Uptime	TS_App-DB-MySQL-Uptime
App-Monitoring-Centreon-Broker-module-Stats	TS_App-Monitoring-Centreon-Broker-module-Stats
App-Monitoring-Centreon-Broker-RRD-Stats-Central	TS_App-Monitoring-Centreon-Broker-RRD-Stats-Centra
App-Monitoring-Centreon-Broker-SQL-Stats-Central	TS_App-Monitoring-Centreon-Broker-SQL-Stats-Central

Requête pour filtrer un modèle de template

Nous allons lister ci-dessous tous les services actifs rattachés à un template apache

Cela correspondra au filtre dans la console pour chaque hosts

Requête

SELECT DISTINCT
STPL.service_description AS "TEMMPLATE",
SVC.service_description AS "SERVICE"
FROM centreon.service AS SVC
LEFT JOIN centreon.service AS STPL ON STPL.service_id=SVC.service_template_model_stm_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
AND STPL.service_description LIKE "%apache%"
ORDER BY SVC.service_description

SELECT DISTINCT
STPL.service_description AS "TEMMPLATE",
SVC.service_description AS "SERVICE"
FROM centreon.service AS SVC
LEFT JOIN centreon.service AS STPL ON STPL.service_id=SVC.service_template_model_stm_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
AND STPL.service_description LIKE "%apache%"
ORDER BY SVC.service_description

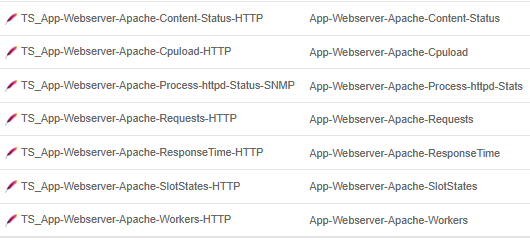

Résultat

TEMPLATE	SERVICE
TS_App-Webserver-Apache-Content-Status-HTTP	App-Webserver-Apache-Content-Status
TS_App-Webserver-Apache-Cpuload-HTTP	App-Webserver-Apache-Cpuload
TS_App-Webserver-Apache-Process-httpd-Status-SNMP	App-Webserver-Apache-Process-httpd-Stats
TS_App-Webserver-Apache-ResponseTime-HTTP	App-Webserver-Apache-ResponseTime
TS_App-Webserver-Apache-SlotStates-HTTP	App-Webserver-Apache-SlotStates
TS_App-Webserver-Apache-Workers-HTTP	App-Webserver-Apache-Workers

Les servicegroups

Contexte

Personnellement j’utilise les servicegroups pour faire certaines regroupements fonctionnels ou techniques :

Par application
Par type d’indicateurs
Disques
Process
Services Web
Service SGBD

Tous les recoupements sont possibles du moment qu’ils sont utiles.

Imaginez les tableaux de bord dont vous auriez besoin pour vos tableaux de bord

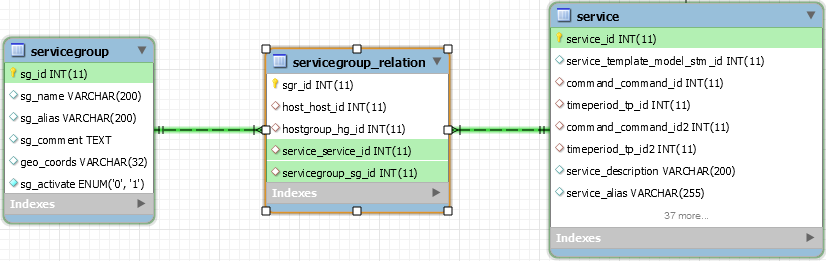

Le schéma

Analyse

Le schéma ci-dessus nous montre la relation entre les services et les groupes de services :

La table servicegroup_relation fait la jointure entre :
servicegroup_relation.service_service_id = service.service_id
servicegroup_relation.servicegreoup_sg_id = servicegroup.sg_id

Requête pour tout lister

Requête

SELECT SG.sg_name AS "SERVICEGROUP"
FROM centreon.servicegroup AS SG
ORDER BY SG.sg_name;

SELECT SG.sg_name AS "SERVICEGROUP"
FROM centreon.servicegroup AS SG
ORDER BY SG.sg_name;

Résultat

SERVICEGROUP
SG_Apache
SG_Centreon
SG_Cluster
SG_DB-Mongodb
SG_DB-Mysql
SG_Linux
SG_Linux-Disk
SG_Linux-Process
SG_Web-Apache
SG_Web-Nginx
SG_Web-PHP

Relation entre services et servicegroups

Nous avons 2 filtres déterminants :

Le mot clé « distinct » pour éviter les doublons
Et le test boolean « is not null » pour n’afficher que les services étant rattaché à un group

Requête

Vision depuis la table service

SELECT DISTINCT
SVC.service_description AS "SERVICE",
SG.sg_name AS "SERVICEGROUP"
FROM centreon.service AS SVC
LEFT JOIN centreon.servicegroup_relation AS SGR ON SGR.service_service_id=SVC.service_id
LEFT JOIN centreon.servicegroup AS SG ON SG.sg_id=SGR.servicegroup_sg_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
AND SG.sg_name IS NOT NULL
ORDER BY SVC.service_description, SG.sg_name;

SELECT DISTINCT
SVC.service_description AS "SERVICE",
SG.sg_name AS "SERVICEGROUP"
FROM centreon.service AS SVC
LEFT JOIN centreon.servicegroup_relation AS SGR ON SGR.service_service_id=SVC.service_id
LEFT JOIN centreon.servicegroup AS SG ON SG.sg_id=SGR.servicegroup_sg_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
AND SG.sg_name IS NOT NULL
ORDER BY SVC.service_description, SG.sg_name;

Vision depuis la table servicegroup

SELECT DISTINCT
SVC.service_description AS "SERVICE",
SG.sg_name AS "SERVICEGROUP"
FROM centreon.servicegroup AS SG
LEFT JOIN centreon.servicegroup_relation AS SGR ON SGR.servicegroup_sg_id=SG.sg_id
LEFT JOIN centreon.service AS SVC ON SVC.service_id=SGR.service_service_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
ORDER BY SG.sg_name, SVC.service_description;

SELECT DISTINCT
SVC.service_description AS "SERVICE",
SG.sg_name AS "SERVICEGROUP"
FROM centreon.servicegroup AS SG
LEFT JOIN centreon.servicegroup_relation AS SGR ON SGR.servicegroup_sg_id=SG.sg_id
LEFT JOIN centreon.service AS SVC ON SVC.service_id=SGR.service_service_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
ORDER BY SG.sg_name, SVC.service_description;

Résultat Tronqué

SG_Apache	App-Cluster-Centreon-HA-Resource-http-Status
SG_Centreon	App-Cluster-Centreon-HA-Resource-http-Status
SG_Centreon	App-Cluster-Centreon-HA-Resource-ms_mysql-clone-Status
SG_Centreon	App-Cluster-Centreon-HA-Resource-php-clone-Status
SG_Centreon	App-Cluster-Centreon-HA-Resource-snmptrapd-Status
SG_Centreon	App-Cluster-Centreon-HA-Resource-vip_mysql-clone-Status
SG_Centreon	App-Cluster-Centreon-HA-Resource-vip-Status
SG_Centreon	App-DB-MySQL-Connections-Number
SG_Centreon	App-DB-MySQL-Connection-Time
SG_Centreon	App-DB-MySQL-Database-Size
SG_Centreon	App-DB-MySQL-Long-Queries
SG_Centreon	App-DB-Mysql-Process-mysqld-Status
SG_Centreon	App-DB-MySQL-Slowqueries
SG_Centreon	App-DB-MySQL-Uptime
SG_Centreon	App-Monitoring-Centreon-Broker-module-Stats
SG_Centreon	App-Monitoring-Centreon-Broker-RRD-Stats-Central
SG_Centreon	App-Monitoring-Centreon-Broker-SQL-Stats-Central
SG_Centreon	App-Monitoring-Centreon-Process-broker-rrd
SG_Centreon	App-Monitoring-Centreon-Process-broker-sql
SG_Centreon	App-Monitoring-Centreon-Process-cbd
SG_Centreon	App-Monitoring-Centreon-Process-centengine
SG_Cluster	App-Cluster-Centreon-HA-Resource-gorgone-Status
SG_Cluster	App-Cluster-Centreon-HA-Resource-http-Status
SG_Cluster	App-Cluster-Centreon-HA-Resource-ms_mysql-clone-Status
SG_Cluster	App-Cluster-Centreon-HA-Resource-php-clone-Status
SG_Cluster	App-Cluster-Centreon-HA-Resource-snmptrapd-Status
SG_Cluster	App-Cluster-Centreon-HA-Resource-vip_mysql-clone-Status
SG_Cluster	App-Cluster-Centreon-HA-Resource-vip-Status
SG_Linux	App-DB-Mysql-Process-mysqld-Status
SG_Linux	App-Monitoring-Centreon-Process-broker-rrd
SG_Linux	App-Monitoring-Centreon-Process-broker-sql
SG_Linux	App-Monitoring-Centreon-Process-cbd
SG_Linux-Process	App-DB-Mysql-Process-mysqld-Status
SG_Linux-Process	App-Monitoring-Centreon-Process-broker-rrd
SG_Linux-Process	App-Monitoring-Centreon-Process-broker-sql
SG_Linux-Process	App-Monitoring-Centreon-Process-cbd
SG_Linux-Process	Os-Linux-Process-sshd-Status
SG_Linux-Process	Os-Linux-Process-snmpd-Status
SG_Web-Apache	App-Cluster-Centreon-HA-Resource-http-Status
SG_Web-PHP	App-Cluster-Centreon-HA-Resource-php-clone-Status

Nous pouvons remarquer qu’un même service peut être rattaché à plusieurs servicegroup

Les services categories

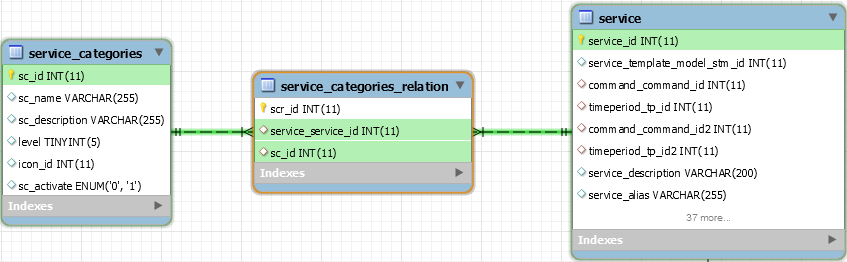

Schéma

Analyse

Le schéma ci-dessus nous montre la relation entre les services et les catégories de services :

La table service_categories_relation fait la jointure entre :
categories_relation.service_service_id = service.service_id
service_categories_relation. sc_id = service_categories.sc_id

Requête pour tout lister

Requête

SELECT sc_name,sc_description
FROM centreon.service_categories
ORDER BY sc_name;

SELECT sc_name,sc_description
FROM centreon.service_categories
ORDER BY sc_name;

Résultat

sc_name	sc_description
SC_ Apache_Services	SC_Apache_Services
SC_Centreon_Process	SC_ Centreon_Process
SC_Disk	SC_Disk
SC_ Linux_disk_Usage	SC_ Linux_disk_Usage
SC_ Linux_process	SC_Linux_process
SC_Memory	SC_Memory
SC_Ping	SC_ping
SC_Traffic	SC_Traffic

Lister les services et leur service categories

Requête

Vision depuis la table service

SELECT DISTINCT
SC.sc_name AS "SERVICECATEGORIES",
SVC.service_description AS "SERVICE"
FROM centreon.service AS SVC
LEFT JOIN centreon.service_categories_relation AS SCR ON SCR.service_service_id=SVC.service_id
LEFT JOIN centreon.service_categories AS SC ON SC.sc_id=SCR.sc_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
AND SC.sc_name IS NOT NULL
ORDER BY SC.sc_name, SVC.service_description;

SELECT DISTINCT
SC.sc_name AS "SERVICECATEGORIES",
SVC.service_description AS "SERVICE"
FROM centreon.service AS SVC
LEFT JOIN centreon.service_categories_relation AS SCR ON SCR.service_service_id=SVC.service_id
LEFT JOIN centreon.service_categories AS SC ON SC.sc_id=SCR.sc_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
AND SC.sc_name IS NOT NULL
ORDER BY SC.sc_name, SVC.service_description;

Vision depuis la table service_catégories

SELECT DISTINCT
SC.sc_name AS "SERVICECATEGORIES",
SVC.service_description AS "SERVICE"
FROM centreon.service_categories AS SC
LEFT JOIN centreon.service_categories_relation AS SCR ON SCR.sc_id=SC.sc_id
LEFT JOIN centreon.service AS SVC ON SVC.service_id=SCR.service_service_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
AND SC.sc_name IS NOT NULL
ORDER BY SC.sc_name, SVC.service_description;

SELECT DISTINCT
SC.sc_name AS "SERVICECATEGORIES",
SVC.service_description AS "SERVICE"
FROM centreon.service_categories AS SC
LEFT JOIN centreon.service_categories_relation AS SCR ON SCR.sc_id=SC.sc_id
LEFT JOIN centreon.service AS SVC ON SVC.service_id=SCR.service_service_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
AND SC.sc_name IS NOT NULL
ORDER BY SC.sc_name, SVC.service_description;

Résultat

SERVICECATEGORIES	SERVICE
SC_Apache_Services	App-Webserver-Apache-Cpuload
SC_Apache_Services	App-Webserver-Apache-Process-httpd-Stats
SC_Apache_Services	App-Webserver-Apache-ResponseTime
SC_Apache_Services	App-Webserver-Apache-SlotStates
SC_Apache_Services	App-Webserver-Apache-Workers
SC_Centreon_Process	App-Monitoring-Centreon-Process-broker-rrd
SC_Centreon_Process	App-Monitoring-Centreon-Process-broker-sql
SC_Centreon_Process	App-Monitoring-Centreon-Process-cbd
SC_Centreon_Process	App-Monitoring-Centreon-Process-centengine
SC_Centreon_Process	App-Monitoring-Centreon-Process-gorgoned
SC_Linux_disk_Usage	OS-Linux-Disk-/-Usage
SC_Linux_disk_Usage	OS-Linux-Disk-/home-Usage
SC_Linux_disk_Usage	OS-Linux-Disk-/var/lib/mysql-Usage
SC_Linux_disk_Usage	OS-Linux-Disk-/var/lib/centreon-Usage
SC_Linux_disk_Usage	OS-Linux-Disk-/var/log/mysql-Usage
SC_Linux_process	App-DB-Mysql-Process-mysqld-Status
SC_Linux_process	Os-Linux-Process-sshd-Status
SC_Linux_process	Os-Linux-Process-snmpd-Status
SC_Linux_process	Os-Linux-Process-snmptrapd-Status

Les services, servicesgroups,service_categories

Context

Nous allons voir comment de bout en bout comment faire le lien entre les 3 tables

Depuis la bale des services
Depuis la table des servicegroup
Depuis la table des service catgories

Schéma

Requête

Vision depuis la table service

SELECT DISTINCT
SVC.service_description AS "SERVICE",
SG.sg_name AS "GROUP",
SC.sc_name AS CATEGORIES
FROM centreon.service AS SVC
LEFT JOIN centreon.servicegroup_relation AS SGR ON SGR.service_service_id=SVC.service_id
LEFT JOIN centreon.servicegroup AS SG ON SG.sg_id=SGR.servicegroup_sg_id
LEFT JOIN centreon.service_categories_relation AS SCR ON SCR.service_service_id=SVC.service_id
LEFT JOIN centreon.service_categories AS SC ON SC.sc_id=SCR.sc_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
AND SG.sg_name IS NOT NULL
ORDER BY SVC.service_description, SG.sg_name,SC.sc_name;

SELECT DISTINCT
SVC.service_description AS "SERVICE",
SG.sg_name AS "GROUP",
SC.sc_name AS CATEGORIES
FROM centreon.service AS SVC
LEFT JOIN centreon.servicegroup_relation AS SGR ON SGR.service_service_id=SVC.service_id
LEFT JOIN centreon.servicegroup AS SG ON SG.sg_id=SGR.servicegroup_sg_id
LEFT JOIN centreon.service_categories_relation AS SCR ON SCR.service_service_id=SVC.service_id
LEFT JOIN centreon.service_categories AS SC ON SC.sc_id=SCR.sc_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
AND SG.sg_name IS NOT NULL
ORDER BY SVC.service_description, SG.sg_name,SC.sc_name;

Vision depuis la table servicegroup

SELECT DISTINCT
SVC.service_description AS "SERVICE",
SG.sg_name AS "GROUP",
SC.sc_name AS CATEGORIES
FROM centreon.servicegroup AS SG
LEFT JOIN centreon.servicegroup_relation AS SGR ON SGR.servicegroup_sg_id=SG.sg_id
LEFT JOIN centreon.service AS SVC ON SVC.service_id=SGR.service_service_id
LEFT JOIN centreon.service_categories_relation AS SCR ON SCR.service_service_id=SVC.service_id
LEFT JOIN centreon.service_categories AS SC ON SC.sc_id=SCR.sc_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
AND SG.sg_name IS NOT NULL
ORDER BY SVC.service_description, SG.sg_name,SC.sc_name;

SELECT DISTINCT
SVC.service_description AS "SERVICE",
SG.sg_name AS "GROUP",
SC.sc_name AS CATEGORIES
FROM centreon.servicegroup AS SG
LEFT JOIN centreon.servicegroup_relation AS SGR ON SGR.servicegroup_sg_id=SG.sg_id
LEFT JOIN centreon.service AS SVC ON SVC.service_id=SGR.service_service_id
LEFT JOIN centreon.service_categories_relation AS SCR ON SCR.service_service_id=SVC.service_id
LEFT JOIN centreon.service_categories AS SC ON SC.sc_id=SCR.sc_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
AND SG.sg_name IS NOT NULL
ORDER BY SVC.service_description, SG.sg_name,SC.sc_name;

Vision depuis la table service_categories

SELECT DISTINCT
SVC.service_description AS "SERVICE",
SG.sg_name AS "GROUP",
SC.sc_name AS CATEGORIES
FROM centreon.service_categories AS SC
LEFT JOIN centreon.service_categories_relation AS SCR ON SCR.sc_id=SC.sc_id
LEFT JOIN centreon.service AS SVC ON SVC.service_id=SCR.service_service_id
LEFT JOIN centreon.servicegroup_relation AS SGR ON SGR.service_service_id=SVC.service_id
LEFT JOIN centreon.servicegroup AS SG ON SG.sg_id=SGR.servicegroup_sg_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
AND SG.sg_name IS NOT NULL
ORDER BY SVC.service_description, SG.sg_name,SC.sc_name;

SELECT DISTINCT
SVC.service_description AS "SERVICE",
SG.sg_name AS "GROUP",
SC.sc_name AS CATEGORIES
FROM centreon.service_categories AS SC
LEFT JOIN centreon.service_categories_relation AS SCR ON SCR.sc_id=SC.sc_id
LEFT JOIN centreon.service AS SVC ON SVC.service_id=SCR.service_service_id
LEFT JOIN centreon.servicegroup_relation AS SGR ON SGR.service_service_id=SVC.service_id
LEFT JOIN centreon.servicegroup AS SG ON SG.sg_id=SGR.servicegroup_sg_id
WHERE SVC.service_activate='1'
AND SVC.service_register="1"
AND SG.sg_name IS NOT NULL
ORDER BY SVC.service_description, SG.sg_name,SC.sc_name;

Résultat tronqué

SERVICE	GROUP	CATEGORIES
App-Cluster-Centreon-HA-Resource-cbd_central_broker-Status	SG_App-Monitoring-Centreon	SC_Cluster_Resource
App-Cluster-Centreon-HA-Resource-cbd_central_broker-Status	SG_App-Cluster-Centreon	SC_App-Monitoring-Centreon_Process
App-Cluster-Centreon-HA-Resource-cbd_rrd-clone-Status	SG_App-Monitoring-Centreon	SC_Cluster_Resource
App-Cluster-Centreon-HA-Resource-cbd_rrd-clone-Status	SG_App-Cluster-Centreon	SC_App-Monitoring-Centreon_Process
App-DB-Mysql-Process-mysqld-Status	SG_App-DB-Mysql	SC_Linux_process
App-DB-Mysql-Process-mysqld-Status	SG_App-Cluster-Centreon	SC_App-Cluster_Resource
App-DB-Mysql-Process-mysqld-Status	SG_App-Monitoring-Centreon	SC_App-DB-Mysql
App-Monitoring-Centreon-Process-broker-rrd	SG_App-Monitoring-Centreon	SC_App-Monitoring-Centreon_Process
App-Monitoring-Centreon-Process-broker-rrd	SG_App-Cluster-Centreon	SC_App-Monitoring-Centreon_Process
App-Monitoring-Centreon-Process-broker-rrd	SG_App-Monitoring-Centreon	SC_Cluster_Resource-clone
App-Monitoring-Centreon-Process-broker-sql	SG_App-Monitoring-_Centreon	SC_App-DB-Mysql
App-Monitoring-Centreon-Process-broker-sql	SG_App-Monitoring-_Centreon	SC_Cluster_Resource-clone
App-Monitoring-Centreon-Process-broker-sql	SG_App-Cluster-Centreon	SC_App-DB-Mysql
App-Monitoring-Centreon-Process-centengine	SG_App-Monitoring-Centreon	SC_App-Monitoring-Centreon_Process
App-Monitoring-Centreon-Process-centengine	SG_App-Monitoring-Centreon	SC_App-Cluster_Resource
App-Monitoring-Centreon-Process-centengine	SG_App-Cluster-Centreon	SC_App-Monitoring-Centreon_Process
App-Monitoring-Centreon-Process-gorgoned	SG_App-Monitoring-Centreon	SC_App-Monitoring-Centreon_Process
App-Monitoring-Centreon-Process-gorgoned	SG_App-Monitoring-Centreon	SC_App-Cluster_Resource
App-Monitoring-Centreon-Process-gorgoned	SG_App-Cluster-Centreon	SC_App-Monitoring-Centreon_Process
App-Webserver-Apache-Cpuload	SG_App-WebServer-Apache	SC_App-Webserver-Apache_Services
App-Webserver-Apache-Cpuload	SG_App-Monitoring-Centreon	SC_App-Webserver-Apache_Status
App-Webserver-Apache-Cpuload	SG_App-Cluster-Centreon	SC_App-Monitoring-Centreon_Process
App-Webserver-Apache-Process-httpd-Stats	SG_App-WebServer-Apache	SC_App-Webserver-Apache_Services
App-Webserver-Apache-Process-httpd-Stats	SG_App-WebServer-Apache	SC_Web_Services
App-Webserver-Apache-ResponseTime	SG_App-WebServer-Apache	SC_App-Webserver-Apache_Services
App-Webserver-Apache-SlotStates	SG_App-WebServer-Apache	SC_App-Webserver-Apache_Services
App-Webserver-Apache-SlotStates	SG_App-Monitoring-Centreon	SC_App-Webserver-Apache_Status
OS-Linux-Disk-/var/lib/mysql-Usage	SG_App-Monitoring-Centreon	SC_OS-Linux-Disk-Usage
OS-Linux-Disk-/var/lib/mysql-Usage	SG_App-DB-Mysql	SC_App-DB-Mysql-Disk-Usage
OS-Linux-Disk-/var/lib/centreon-Usage	SG_App-Monitoring-Centreon	SC_OS-Linux-Disk-Usage
OS-Linux-Disk-/var/log/mysql-Usage	SG_App-DB-Mysql	SC_OS-Linux-Disk-Usage
OS-Linux-Disk-/var/log/mysql-Usage	SG_App-DB-Mysql	SC_App-DB-Mysql-Disk-Usage
OS-Linux-Process-crond-Status	SG_OS-Linux-Process-Status	SC_App-Monitoring-Centreon_Process
OS-Linux-Process-crond-Status	SG_App-Monitoring-Centreon	SC_OS-Linux-Process-Status
OS-Linux-Process-ntpd-Status	SG_OS-Linux-Process-Status	SC_OS-Linux-Process-Status
OS-Linux-Process-ntpd-Status	SG_App-Monitoring-Centreon	SC_OS-Linux-Process-Status

Conclusion

Nous venons de voir différentes requêtes autour des services et leurs regroupements.

Il est important de noter que cette vision ne prend pas en compte le lien avec les hosts que vous verrons dans un prochain article.
